OEM/ODM SZ Gearbox for Conical Twin Screw Extruding Machine Manufacturers

Home / Products / Bimetal auxiliary engine series / SZ Gearbox for Conical Twin Screw Extruding Machine

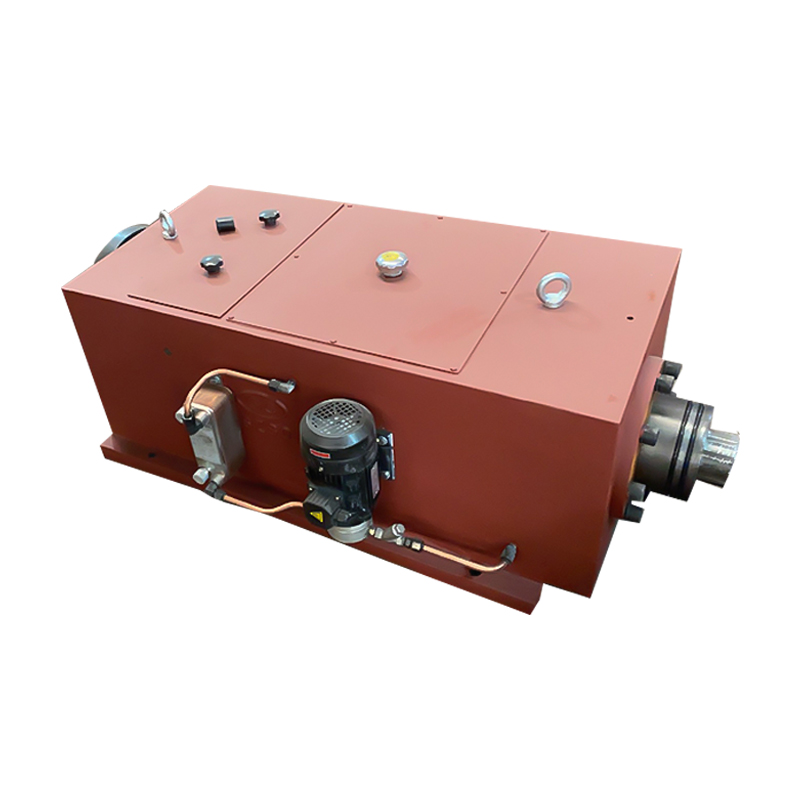

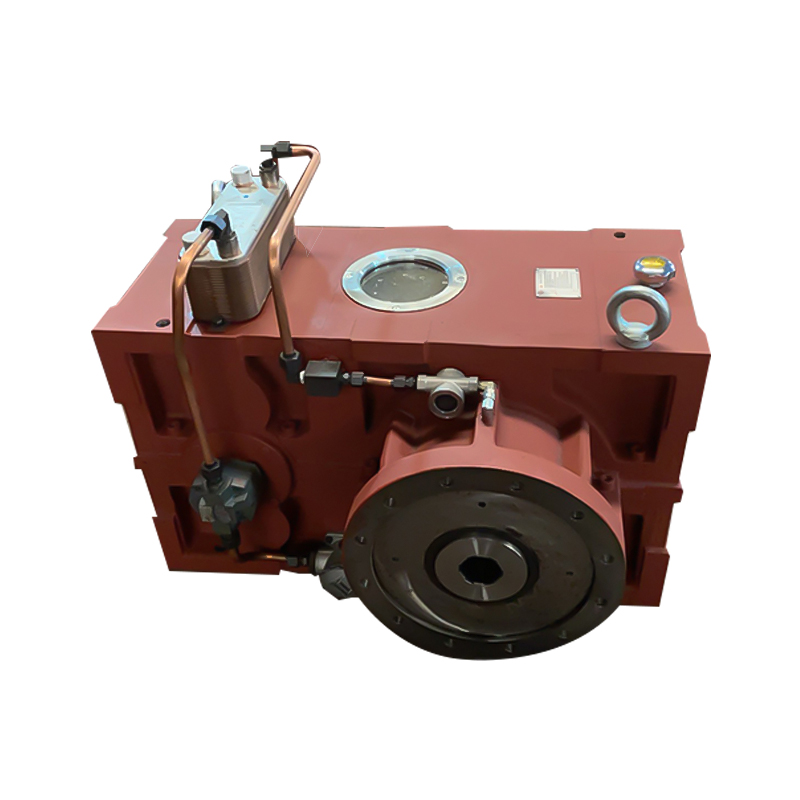

SZ Gearbox for Conical Twin Screw Extruding Machine
Bimetal auxiliary engine series

SZ Gearbox for Conical Twin Screw Extruding Machine

The hard gear surface transmission device of SZ series manufactured srictly according to the standard of JB/ T9095.1- 1999 consists of reducer and distributor. It is the special-purpose product of the conical twin screw extruder.
1. The gear of the reducer is high strength alloy steel, carburizing steel. Processed by carburization, quenching and gear grinding, the gear can reach 6-grade.The gear enjoys both high hardness with HRC58-62 and low noise when operating.
2. The gearbox' s small cone angle of helical gear is made by high quality alloy steel. After grinding by CNC gear hobbing machine, the gear will be carburized, quenched to make sure high precision and hardness.
3. Ductile cast iron case and high strength aligning thrust roller bearings makes the item perform steadily and bear large axial thrust.
4. Equipped with cooling system,the reducer and distributor can run safety.
5. Exquisite craftsmanship of cutting makes the item in great shape. Our factory can also design according to customers' requirements besides our available specification.
  • SZ Gearbox for Conical Twin Screw Extruding Machine
  • SZ Gearbox for Conical Twin Screw Extruding Machine
Contact Us
  • Parameter SZ45 SZ50 SZ55 SZ65 SZ80 SZ92
    Input rotation speed 1500 1500 1500 1500 1500 1500
    Output totation speed 44.8 37.8 37.5 39.1 37.7 40
    Input power 18.5 22 30 37  55  110
    Single shaft output torque 1972 2779 3820 4518 6786 13130
    Distribution shaft including angle 2 40' 2 58'12 2 36'14 2 11'16 2 0'18" 1 52'3.64"
    connection spline size 8-48x42x8 8-54x46x9 6-60x53x14 8-65x56x10 8-72x62x12 10-98x92x14
