OEM/ODM HDPE, PP-R Pipe Extrusion Line Manufacturers

Home / Products / Bimetal machinery series / HDPE, PP-R Pipe Extrusion Line
HDPE, PP-R Pipe Extrusion Line
Bimetal machinery series

HDPE, PP-R Pipe Extrusion Line

Features and Functions:

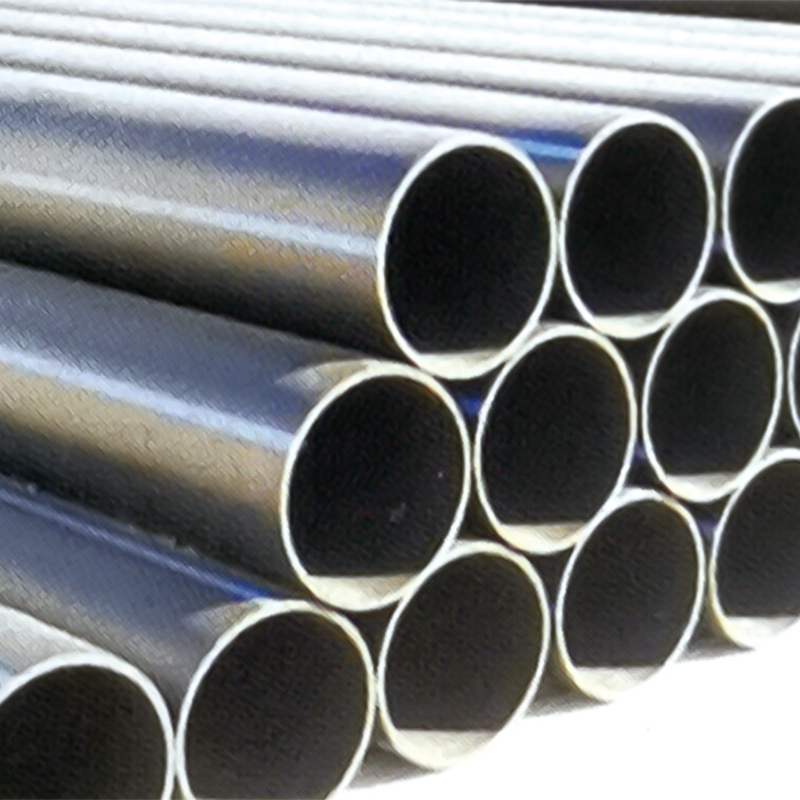

This extrusion line is suitable for producing all kinds of PE/PPR pipes of water supply, draining or industrial cable pipe.

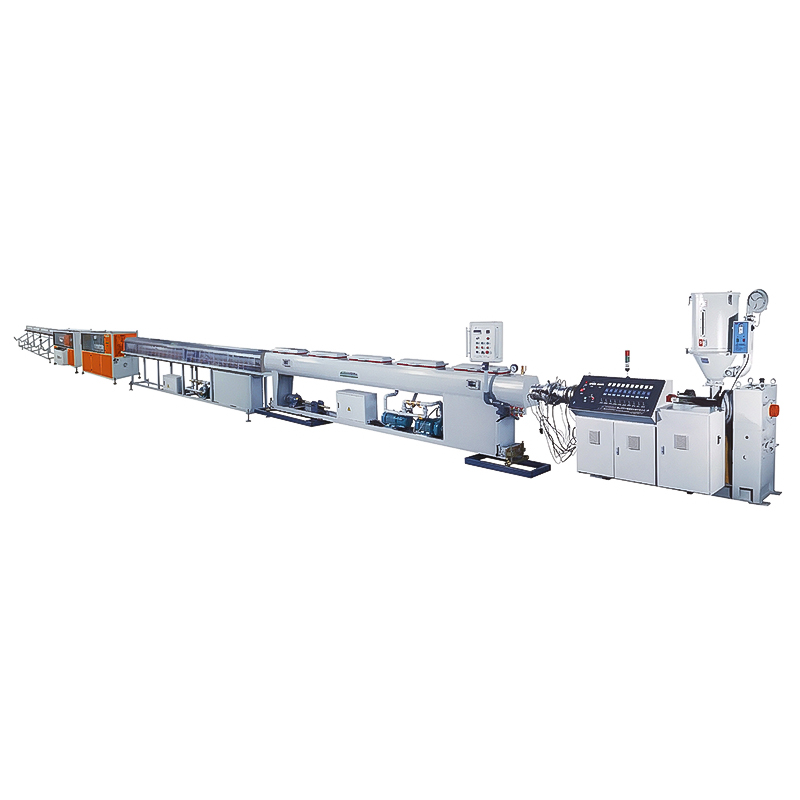

The main machine of this extrusion line is the single screw extruder, vacuum forming bath, spray water cooling bath, traction machine, cutter and product stacker. The single screw extruder and tractor machine adopt the imported AC frequency inverter. The vacuum pump and haul off motor use high quality product. According to different sizes of pipes, there are different designs of traction machine in two, three, four, six, eight, ten and twelve pedrails respectively. There are three designs of cutter in saw cutting, chipless cutting and planetary cutting with PLC control. KEBELN also provide special machines for producing spiral pipe, hollow pipe and foam-core pipe in PP, PE, PE-RT, PPR, PEX by exchanging suitable extruders and accessorial machines. Planetary cutting machine adopts fully automatic computer control, with convenient operation and reliable performance, reached the international leading level.
  • HDPE, PP-R Pipe Extrusion Line
  • HDPE, PP-R Pipe Extrusion Line
  • HDPE, PP-R Pipe Extrusion Line
  • HDPE, PP-R Pipe Extrusion Line
  • HDPE, PP-R Pipe Extrusion Line
Contact Us
  • Model Pipe Range (mm)  Extruder Model Max. Output (kg/h) Motor Power (kw) Length of Production Line(m)
    KBL-63PE 16-63 KBD65-33 200 55 35
    KBL-110PE 20-110 KBD65-33 250 75 36
    KBL-160PE 50-160 KBD65-33 250 75 37
    KBL-250PE 50-250 KBD75-33 450 110 40
    KBL-315PE 90-315 KBD75-33 450 110 40
    KBL-450PE 110-450 KBD90-33 750 185 41
    KBL-630PE 315-630 KBD120-36 1000 315 60
    KBL-800PE 315-800 KBD120-36 1400 355 66
    KBL-1200PE 630-1200 KBD120-36 1400 355 75
    KBL-1600PE 1000-1600 KBD150-36 1600 450 80

  • 36000㎡

    Construction area

  • 25000㎡

    Workshop area

  • 100+

    Skillful employees

  • 20

    Technicalist personal

ABOUT US

ZHEJIANG BIMETAL
MACHINERY CO., LTD.

Zhejiang Bimetal Machinery Co., Ltd. (formerly Zhejiang Zhoushan Dinghai Chen’s Machinery Co., Ltd.) is located at the coast of East China Sea, adjacent to the famous international deep-water port – Ningbo Beilun Port.

Bimetal is leading China HDPE, PP-R Pipe Extrusion Line manufacturers and HDPE, PP-R Pipe Extrusion Line factory which specializes in manufacturing series of screws, rubber melting cylinder products. Products are widely used in the 30-40000 grams injection molding machine, the 15-250mm single screw extruder, and the 30-130mm conical and parallel twin-screw extruder and all kinds of rubber machine, weaving machine, puffed food machine. All of the products are made of quality 38CrMoALA steel. By employment of fine processes of quenching and tempering, stiffening, nitriding, grinding, finishing, and guidance of ISO9002 International Quality Control System, products are in line with international standards. GⅡ 113 nickel-based alloy (latest 3# steel) screw cylinder is also one of our fist products; it is applicable for alloy bimetal (PTA) welding. In addition to providing balance equipment for complete machine companies abroad, we are also a leading Supplier undertaking OEM service, surveying and mapping assistance, as well as design services for big and small companies at home. No matter you are our existing partner or potential customer, with products and services, we warmly welcome your visit and inquiries with our wholeheartedly and thoughtful services. Welcome to visit our HDPE, PP-R Pipe Extrusion Line manufacturing company in China.
