PE, PP & PVC Profile Extrusion Production Line
Bimetal machinery series

PE, PP & PVC Profile Extrusion Production Line

Features and Application:

Material can be extruded out directly after two grades of mixing, and it can also be extruded by two steps after pelleting.
The line is of characteristics of energy and space saving, high output, stable performance etc. Preheating feeder is installed at the top of extruder, which will dry the wood powder firstly, thus perfect plasticization is guaranteed. Specialdesigned screw will minimize cutting force, which provents wooden fiber from being damaged. Both screw and barrel are speacial-treated, which are featured of abrasion proof and long life-span.

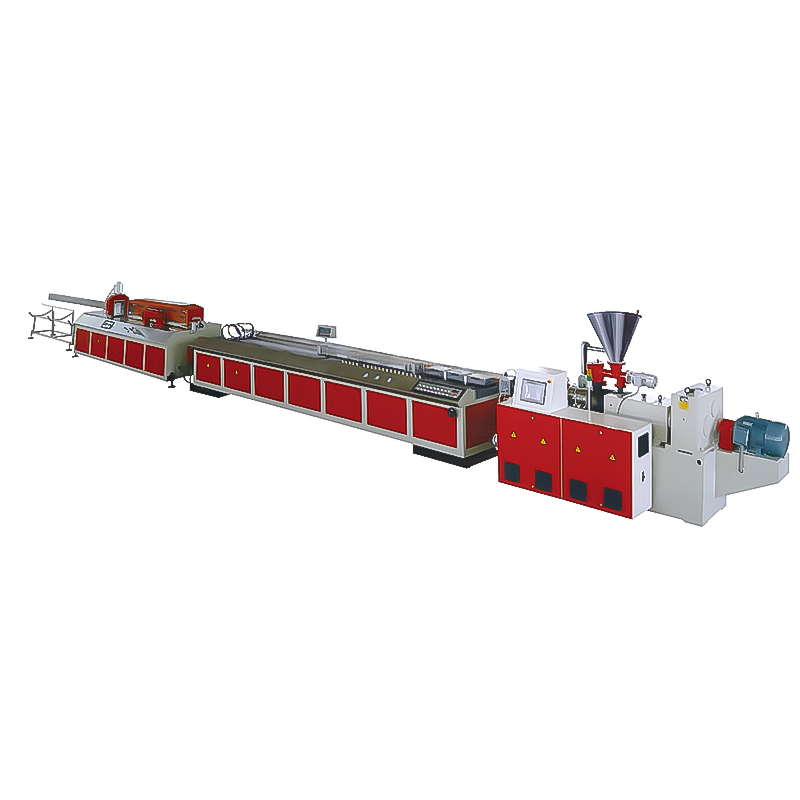

This production line is consisted of conical twin-screw extruder, vacuum calibration table, haul-off unit and stacker, and also coordinated with different kinds of moulds to produce PVC door & window profiles, foamed special-shaped profiles, decoration plates etc.

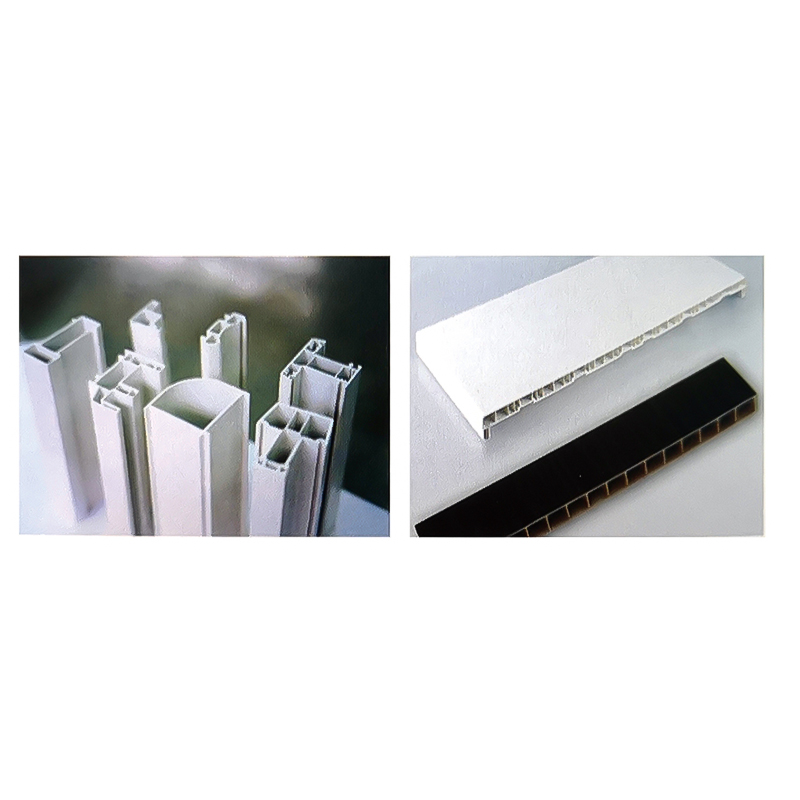

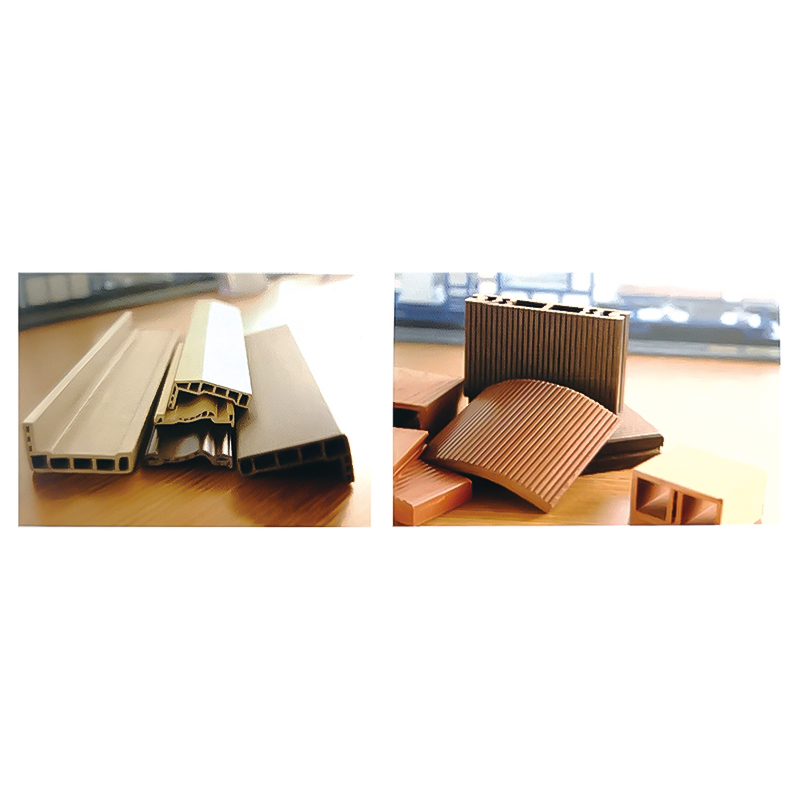

The end products PE, PP or PVC wood plastic compound profiles are of wide application, which are mainly be used for trays, box boards, flooring, outdoor decorative materials and so on. The wood and plant fiber increasing rate is very high(up to 50-70%), and the line is of good adoptability, which can be used for process different materials such as PP, PE, PVC, ABS, PS and so on
  • PE, PP & PVC Profile Extrusion Production Line
  • PE, PP & PVC Profile Extrusion Production Line
  • PE, PP & PVC Profile Extrusion Production Line
Contact Us
  • Extruder Single Screw Conical Twin Screw Parallel Twin Screw
    Model FST65/28 FST90/28 FST120/28 FST65/132 FST80/156 FST92/188 FST75/44 FST92/44
    Prive Power(kw） 30 55 90 37 55 110 75 132
    Max. Capacity(kg/h) 50-60 80-100 150-200 120 280 350 300 500
    Center Height(mm) 1050 1050 1050 1050 1050 1100 1050 1050
    Weight(kg) 1200 2000 4000 4000 5500 8000 5000 8800

  • 36000㎡

    Construction area

  • 25000㎡

    Workshop area

  • 100+

    Skillful employees

  • 20

    Technicalist personal

ABOUT US

ZHEJIANG BIMETAL
MACHINERY CO., LTD.

Zhejiang Bimetal Machinery Co., Ltd. (formerly Zhejiang Zhoushan Dinghai Chen’s Machinery Co., Ltd.) is located at the coast of East China Sea, adjacent to the famous international deep-water port – Ningbo Beilun Port.

Bimetal is leading China PE, PP & PVC Profile Extrusion Production Line manufacturers and PE, PP & PVC Profile Extrusion Production Line factory which specializes in manufacturing series of screws, rubber melting cylinder products. Products are widely used in the 30-40000 grams injection molding machine, the 15-250mm single screw extruder, and the 30-130mm conical and parallel twin-screw extruder and all kinds of rubber machine, weaving machine, puffed food machine. All of the products are made of quality 38CrMoALA steel. By employment of fine processes of quenching and tempering, stiffening, nitriding, grinding, finishing, and guidance of ISO9002 International Quality Control System, products are in line with international standards. GⅡ 113 nickel-based alloy (latest 3# steel) screw cylinder is also one of our fist products; it is applicable for alloy bimetal (PTA) welding. In addition to providing balance equipment for complete machine companies abroad, we are also a leading Supplier undertaking OEM service, surveying and mapping assistance, as well as design services for big and small companies at home. No matter you are our existing partner or potential customer, with products and services, we warmly welcome your visit and inquiries with our wholeheartedly and thoughtful services. Welcome to visit our PE, PP & PVC Profile Extrusion Production Line manufacturing company in China.
