OEM/ODM PVC Pipe Extrusion Line Manufacturers

Home / Products / Bimetal machinery series / PVC Pipe Extrusion Line
PVC Pipe Extrusion Line
Bimetal machinery series

PVC Pipe Extrusion Line

Features and Application:
The production line is developed with the 1990s advanced technology of West Europe by our company.

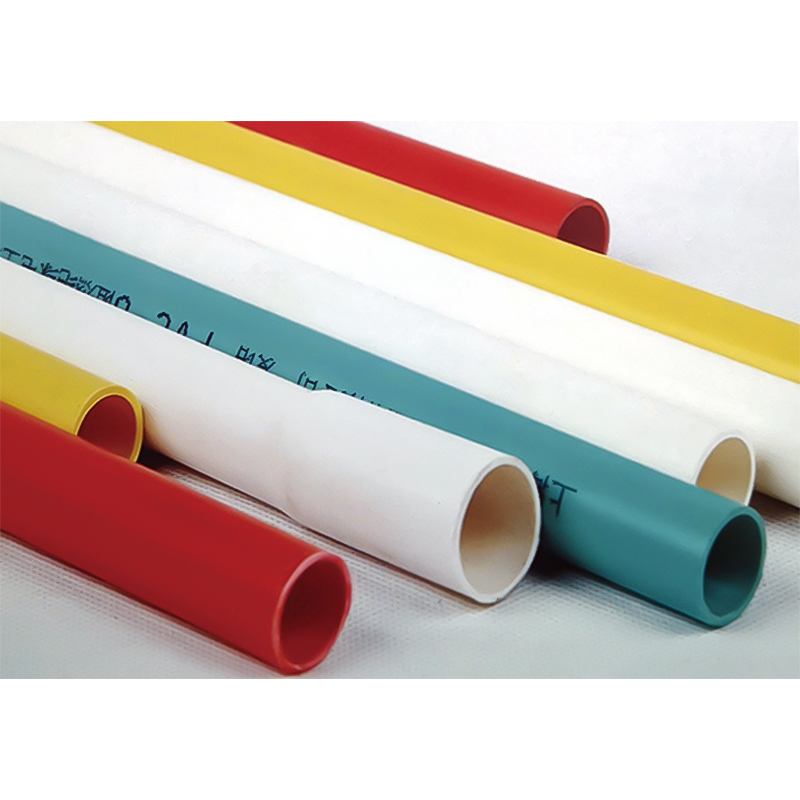

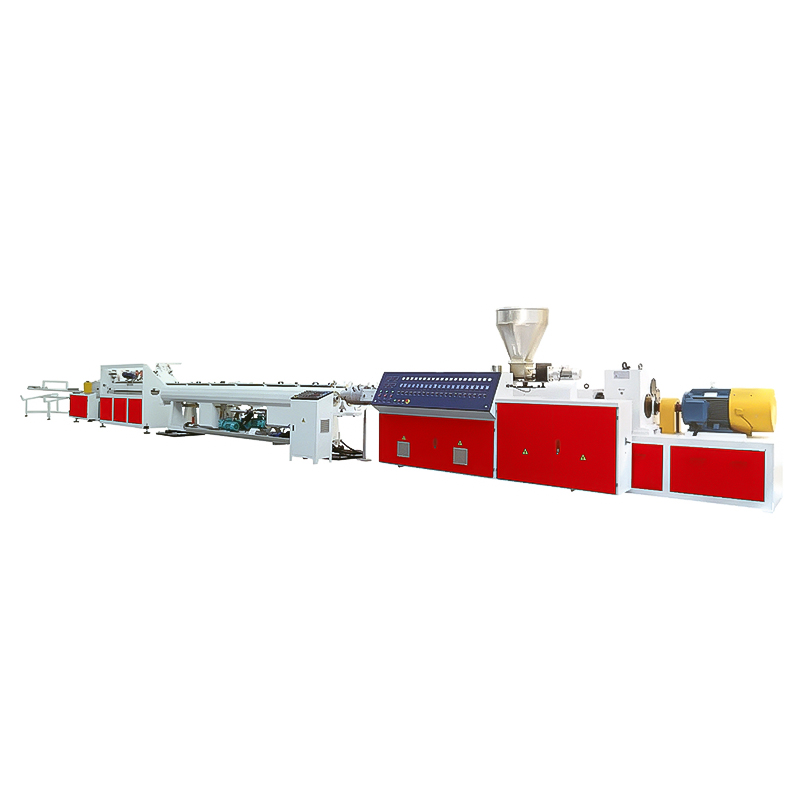

The main machine is SJSZ51/105 or SJSZ65/132 conical twin-screw extruder, equipped with double tube single-control stainless steel spraying shaper tank to form a production line. It avoids a waste condition if one tube is adjusted and the other one is affected. The auto singlecontrol double haul-off and cutter are combined with the front shaping technology to make operation more flexible. Let you enjoy economic benefit which is brought about by separately control double-tube extruding. The diameter of the extruded pipe is fromф20 -ф63. It can make fully use of the extruding capacity of the extruder. Even if it produces small diameter pipe, it can get great output, too.
PVC four pipe extrusion production line with double PVC pipe extrusion production line compared:
Electricity saving around 60%; Air consumption saving around 80%; Water consumption saving around 50%.
No-scrap cutting, saving raw materials and no environmental pollution.
Most electrical components adopt abroad brands, having advantage of multiple alarm, visual display, easy operation and maintenance.
  • PVC Pipe Extrusion Line
  • PVC Pipe Extrusion Line
  • PVC Pipe Extrusion Line
  • PVC Pipe Extrusion Line
  • PVC Pipe Extrusion Line
Contact Us
  • Max. output of extruer (kg/h) 50-200
    Length of vacuum tank (m) 4-5
    Haul-off speed (m/min) 0-15
    Max. diameter of twin pipe (mm) ф16-ф40, ф50-ф110, ф110-ф630
    Haul-off force (N) 1500-3000
    Drive motor power (kw) 40-64

  • 36000㎡

    Construction area

  • 25000㎡

    Workshop area

  • 100+

    Skillful employees

  • 20

    Technicalist personal

ABOUT US

ZHEJIANG BIMETAL
MACHINERY CO., LTD.

Zhejiang Bimetal Machinery Co., Ltd. (formerly Zhejiang Zhoushan Dinghai Chen’s Machinery Co., Ltd.) is located at the coast of East China Sea, adjacent to the famous international deep-water port – Ningbo Beilun Port.

Bimetal is leading China PVC Pipe Extrusion Line manufacturers and PVC Pipe Extrusion Line factory which specializes in manufacturing series of screws, rubber melting cylinder products. Products are widely used in the 30-40000 grams injection molding machine, the 15-250mm single screw extruder, and the 30-130mm conical and parallel twin-screw extruder and all kinds of rubber machine, weaving machine, puffed food machine. All of the products are made of quality 38CrMoALA steel. By employment of fine processes of quenching and tempering, stiffening, nitriding, grinding, finishing, and guidance of ISO9002 International Quality Control System, products are in line with international standards. GⅡ 113 nickel-based alloy (latest 3# steel) screw cylinder is also one of our fist products; it is applicable for alloy bimetal (PTA) welding. In addition to providing balance equipment for complete machine companies abroad, we are also a leading Supplier undertaking OEM service, surveying and mapping assistance, as well as design services for big and small companies at home. No matter you are our existing partner or potential customer, with products and services, we warmly welcome your visit and inquiries with our wholeheartedly and thoughtful services. Welcome to visit our PVC Pipe Extrusion Line manufacturing company in China.

LATEST BLOG & NEWS

Screws are gauged and manufactured to meet your highest quality and performance standards.

Related Products
